Data synchronization schemes

Zaktualizowano 2026-06-17

In this article, we will discuss in detail the schemes available in eFOB admin for synchronizing employee data from available HR and payroll systems, using the eFOBsync synchronizer, to the eFOB eFolder system.

Basic assumptions of synchronization

• Data is currently synchronized unilaterally, i.e. from the HR and payroll system to the eFOB e-File.
• New record data is created in eFolder.
• Data of changed records are updated in the eFolder.
• Employee records deleted from the HR and payroll system ARE NOT deleted or updated in the eFolder.

Supported systems

Currently, the following synchronizations are supported by eTeczka:

1. Symfonia R2Płatnik
2. Symphony of HR and Payroll (KiP)
3. HR and payroll systems based on MS SQL (e.g. Enova and Optima families)
4. (Enterprise) HR and payroll systems based on TETA HR API
5. Any systems that can create data in an MS SQL database (e.g. free MS SQL Express) – see last

Symfonia R2Płatnik

Note: currently eTeczka only supports the “on-premise” version of R2Płatnik. If you need integration with Symfonia R2Płatnik in the "cloud" version, please contact the sales department.

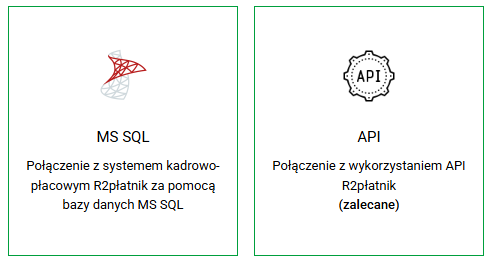

Connection types in R2Płatnik

Two types of connections are supported for the Symfonia R2Płatnik system:

• MS SQL – connection at the database level, additionally allows (request to the support department required) configuration of restrictions on downloading employee data in SQL queries (so-called WHERE).
• API – connection at the R2PAPI level, currently downloads all employee records, eventually it will be possible as a two-way connection.

Symfonia R2Płatnik – MS SQL – “SQL Basic” schema

The "SQL Basic" schema is designed to synchronize basic employee data using SQL connections. It uses a previously defined SQL query.

Data scope and mapping

Below are the basic fields exported from the Symfonia R2Płatnik system and their mapping to the eTeczki eFOB system:

Pole Symfonia R2Płatnik	eFOB field in Employees
Employee ID (internal X_I)	External ID1
ID	External ID2
Name	Name
Surname	Surname
PESEL	PESEL
Document type a) 'Series and DO number' field – condition not empty b) field 'Passport' no - condition empty c) <<no mapping >> d) Field 'Foreigner' <> 'no' (comparison)	Document type a) ID card b) Passport c) Driving license (not supported) d) Other
Document number a) text from the 'Series and DO number' field b) text from the 'Passport' field c) <<no mapping>> d) text from the 'Document number' field or NIP'	Document number
Email (field K_E_mail from the ADDRESS table)	Personal email address
Date_employment	Contract start date (for Contract_o_works=1)
Release_date	Contract end date (for Contract_o_works=1)
ZFrom	Contract start date (for Agreement_zalenie=1 or Agreement_o_dzielo=1)
ZDo	Contract end date (for Agreement_zalenie=1 or Agreement_o_dzielo=1)
Work contract	0 or 1 (not saved to eFOB, only used for the above conditions)
Contract_order	0 or 1 (not saved to eFOB, only used for the above conditions)
Agreement_o_share	0 or 1 (not saved to eFOB, only used for the above conditions)

Symfonia R2Płatnik – MS SQL – “SQL Full” schema

The "SQL Full" schema enables the synchronization of the full range of employee data that has its equivalents in the e-Folder eFOB system.

Data scope and mapping

The fields exported in this schema and their mapping in the eFOB system cover a wider range of information:

R2Płatnik field	eFOB field in Employees
Employee ID (internal X_I)	External ID1
ID	External ID2
Name	Name
Middle name	Middle name
Surname	Surname
Family name	Maiden name
PESEL	PESEL
Date of birth	Date of birth
Place of birth	Place of birth
Marital status	Marital status
Gender	Gender
Nationality	Nationality
Mother's name	Mother's name
Father's name	Father's name
Document type a) 'Series and DO number' field – condition not empty b) field 'Passport' no - condition empty c) <<no mapping >> d) Field 'Foreigner' <> 'no' (comparison)	Document type a) ID card b) Passport c) Driving license (not supported) d) Other
Document number a) text from the 'Series and DO number' field b) text from the 'Passport' field c) <<no mapping>> d) text from the 'Document number' field or NIP'	Document number
Correspondence Address	'Address details' section
Town	City
Postal code	Postal code
Street	Street name
House number	House number
Apartment number	Property number
District	District
County	County
Voivodeship	Voivodeship
Country	Country
Mobile phone	Mobile phone number
Telephone	Business phone number
Email (field K_E_mail from the ADDRESS table)	Personal email address
Date_employment	Contract start date (for Contract_o_works=1)
Release_date	Contract end date (for Contract_o_works=1)
ZFrom	Contract start date (for Agreement_zalenie=1 or Agreement_o_dzielo=1)
ZDo	Contract end date (for Agreement_zalenie=1 or Agreement_o_dzielo=1)
Work contract	0 or 1 (not saved to eFOB, only used for the above conditions)
Contract_order	0 or 1 (not saved to eFOB, only used for the above conditions)
Agreement_o_share	0 or 1 (not saved to eFOB, only used for the above conditions)

Symfonia R2Płatnik – API – “R2P Basic” scheme

The "R2P Basic" scheme is designed to synchronize basic employee data using the API of the Symfonia R2Płatnik system. Currently downloading all employee records

Data scope and mapping

Pole Symfonia R2Płatnik	eFOB field in Employees
Employee ID (internal X_I)	External ID1
Name	Name
Surname	Surname
PESEL	PESEL
Document type a) 'Series and DO number' field – condition not empty b) field 'Passport' no - condition empty c) <<no mapping >> d) Field 'Foreigner' <> 'no' (comparison)	Document type a) ID card b) Passport c) Driving license (not supported) d) Other
Document number a) text from the 'Series and DO number' field b) text from the 'Passport' field c) <<no mapping>> d) text from the 'Document number' field or NIP'	Document number

Symfonia R2Płatnik – API – “R2P Full” scheme

Similarly to the SQL schema, the "R2P Max" schema for API connections enables the synchronization of the full range of employee data, using a defined data structure obtained by the Symfonia R2Płatnik API.

Data scope and mapping

R2Płatnik field	eFOB field in Employees
Employee ID	External ID1
Name	Name
Middle name	Middle name
Surname	Surname
Family name	Maiden name
PESEL	PESEL
Date of birth	Date of birth
Place of birth	Place of birth
Marital status	Marital status
Gender	Gender
Nationality	Nationality
Mother's name	Mother's name
Father's name	Father's name
Document type a) 'Series and DO number' field – condition not empty b) field 'Passport' no - condition empty c) <<no mapping >> d) Field 'Foreigner' <> 'no' (comparison)	Document type a) ID card b) Passport c) Driving license (not supported) d) Other
Document number a) text from the 'Series and DO number' field b) text from the 'Passport' field c) <<no mapping>> d) text from the 'Document number' field or NIP'	Document number
Correspondence Address	'Address details' section
Town	City
Postal code	Postal code
Street	Street name
House number	House number
Apartment number	Property number
District	District
County	County
Voivodeship	Voivodeship
Country	Country
Mobile phone	Mobile phone number
Telephone	Business phone number
Email	Personal email address

Symfonia ERP HR and Payroll

Connection types

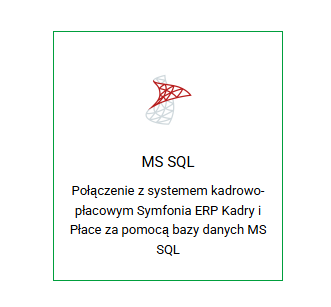

For the Symfonia Kadry i Płace (KiP) system, only one type of connection is supported at the database level:

Symfonia ERP HR and Payroll – MS SQL – “SQL Basic” schema

The "SQL Basic" schema is designed to synchronize basic employee data using SQL connections. It uses a previously defined SQL query. It assumes consistency in the database structure of various clients using the HR and Payroll applications.

Data scope and mapping

The fields exported from the system and their mapping to the eFolder eFOB system are shown below:

KiP field	eFOB field in Employees
EmployeeID	External ID1
Name1	Name
Surname	Surname
PESEL	PESEL
Document type – from the VV_EMPLOYEES view && HRV_ITEM.definition_id = 8330 && HRV_ROW.definition_id = 8312 – only 'ID card' and 'passport'	Document type 1) ID card 2) Passport 3) Driving license (not supported) 4) Other (not supported)
Document number – from the VV_EMPLOYEES view && HRV_ITEM.definition_id = 8310 && HRV_ROW.definition_id = 8312	Document number

Symfonia ERP HR and Payroll – MS SQL – “SQL Full” schema

The "SQL Full" schema enables the synchronization of the full range of employee data that has its equivalents in the eFOB system.

Data scope and mapping

The fields exported in this schema and their mapping in the eFOB system cover a wider range of information:

KiP field	eFOB field in Employees
EmployeeID	External ID1
Name1	Name
Name2	Middle name
Surname	Surname
Family name – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8317 && HRV_ROWS.definition_id = 8316	Maiden name
PESEL	PESEL
Date of birth – if date '1753-01-01' is empty	Date of birth
Place of birth – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8303 && HRV_ROWS.definition_id = 8319	Place of birth
Marital status – if gender 'male' and 'spouse' -> 'married' – if gender 'woman' and 'spouse' -> 'married woman' – if gender only 'male' -> 'bachelor' – if gender only 'female' -> 'virgo' Spouse – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8329 && HRV_ROWS.definition_id = 8329	Marital status
Gender – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8381 && HRV_ROWS.definition_id = 8381	Gender
Nationality – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8331 && HRV_ROWS.definition_id = 8316	Nationality
Mother's name – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8321 && HRV_ROWS.definition_id = 8319	Mother's name
Father's name – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8320 && HRV_ROWS.definition_id = 8319	Father's name
Document type – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8330 && HRV_ROWS.definition_id = 8312 – only 'ID card' and 'passport'	Document type 1) ID card 2) Passport 3) Driving license (not supported) 4) Other (not supported)
Document number – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8310 && HRV_ROWS.definition_id = 8312	Document number
Correspondence Address	'Address details' section
Town – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8303 && HRV_ROWS.definition_id = 8309	City
Postal code – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8304 && HRV_ROWS.definition_id = 8309	Postal code
Street – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8300 && HRV_ROWS.definition_id = 8309	Street name
House number – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8301 && HRV_ROWS.definition_id = 8309	House number
Apartment no – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8302 && HRV_ROWS.definition_id = 8309	Property number
District – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8306 && HRV_ROWS.definition_id = 8309	District
County – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8332 && HRV_ROWS.definition_id = 8309	County
Voivodeship – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8307 && HRV_ROWS.definition_id = 8309	Voivodeship
Country – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 8308 && HRV_ROWS.definition_id = 8309	Country
Mobile phone – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 14512 && HRV_ROWS.definition_id = 14512	Mobile phone number
Telephone – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 14511 && HRV_ROWS.definition_id = 14511	Business phone number
Email – from the VV_EMPLOYEES view && HRV_ITEMS.definition_id = 14513 && HRV_ROWS.definition_id = 14513	Personal email address

Any systems that provide data in MS SQL

1. Entry

The document describes the complete process of preparing an intermediate SQL Server database enabling the synchronization of employee data to eFOBSync without modifying the integration tools. The solution assumes:

• creation of two databases (BIN and DANE),
• creation of staging tables powered by the client's system and views identical in structure to the previously described R2Płatnik.

2. Architectural assumptions

1. eFOBSync communicates with two separate databases: BIN (company list) and DANE (employee data).
2. Database names must follow the convention: R2P_<database_name>_bin and R2P_<database_name>_data_<company id>.
3. eFOBSync queries objects with fixed names: COMPANY, EMPLOYEE, EMPLOYEE.
4. Source data can be stored in any staging tables - only views mapping them to the R2P contract are required.

3. Installation and configuration of MS SQL (Express) – proposal

The staging database can run on any Microsoft SQL Server instance, including the free version of Microsoft SQL Server Express.

By default, the R2P installer: – installs SQL Server Express, – creates an instance called SYMFONIAR2P, – enables SQL Server Authentication logging, – creates an account login: sa with the default password.

However, this is not required. The customer can independently: – install Microsoft SQL Server (Express or higher edition), – choose any instance name, – configure your own SQL account or use an existing one, – set your own passwords and security policies.

4. Creation of databases

You need to create two SQL Server databases:

CREATE DATABASE [R2P_platnik10_bin];
GO
CREATE DATABASE [R2P_platnik10_dane_1];
GO

4a. BIN database setup – list of companies

In the BIN database, you need to create staging tables and a FIRM view that will be read by eFOBsync.

USE [R2P_platnik10_bin];
GO

CREATE TABLE dbo.STG_FIRM (
  X_I   INT NOT NULL PRIMARY KEY,
  Nazwa NVARCHAR(200) NOT NULL
);
GO

CREATE VIEW dbo.FIRM AS
SELECT X_I, Nazwa
FROM dbo.STG_FIRM;
GO

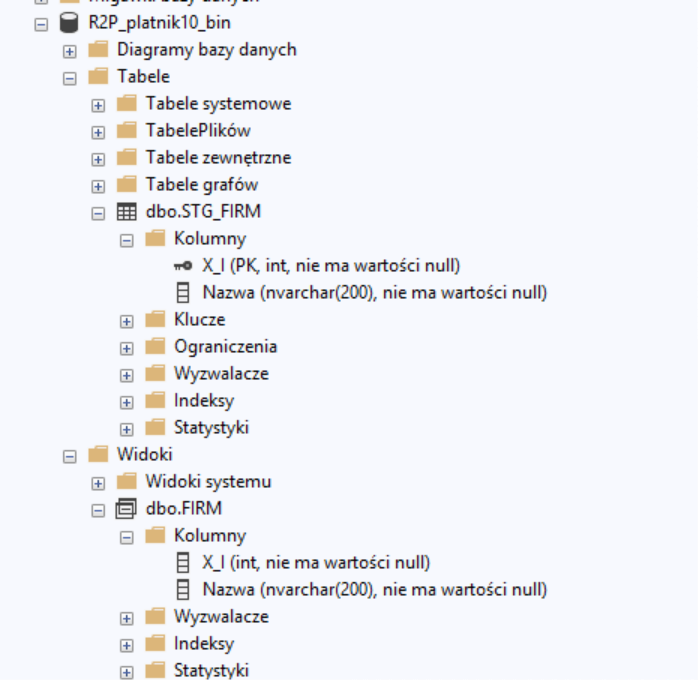

What should the BIN database look like?

4b. Database setup DATA – actual data (Basic version):

In the DATA database, you should create one staging table powered by the client's system and two views mapping the Symfonia R2Płatnik structure.

USE [R2P_platnik10_dane_1];
GO

CREATE TABLE dbo.STG_PRACOWNICY (
  PersonId           INT NOT NULL PRIMARY KEY,
  Imie               NVARCHAR(100) NULL,
  Nazwisko           NVARCHAR(200) NULL,
  PESEL              NVARCHAR(11) NULL,
  DocumentNumber     NVARCHAR(50) NULL,
  Identyfikator      NVARCHAR(10) NULL,
  Data_zatrudnienia  DATETIME NULL,
  Data_zwolnienia    DATETIME NULL,
  E_Mail             NVARCHAR(120) NOT NULL
);
GO

CREATE OR ALTER VIEW dbo.PRACOWNK AS
SELECT
  PersonId AS X_I,
  Imie,
  Nazwisko,
  Identyfikator,
  Data_zatrudnienia,
  Data_zwolnienia,
  NULL as ZDo,
  NULL as ZOd,
  1 as Umowa_o_prace,
  0 as Umowa_zlecenie,
  0 as Umowa_o_dzielo
FROM dbo.STG_PRACOWNICY;
GO

CREATE VIEW dbo.PRACDANE AS
SELECT
  PersonId AS X_IPRACOWNIK,
  PESEL,
  DocumentNumber AS Seria_i_nr_DO
FROM dbo.STG_PRACOWNICY;
GO

CREATE VIEW dbo.ADRES AS
SELECT
  PersonId AS X_IPRACOWNIK,
  E_Mail AS K_E_mail
FROM dbo.STG_PRACOWNICY;
GO

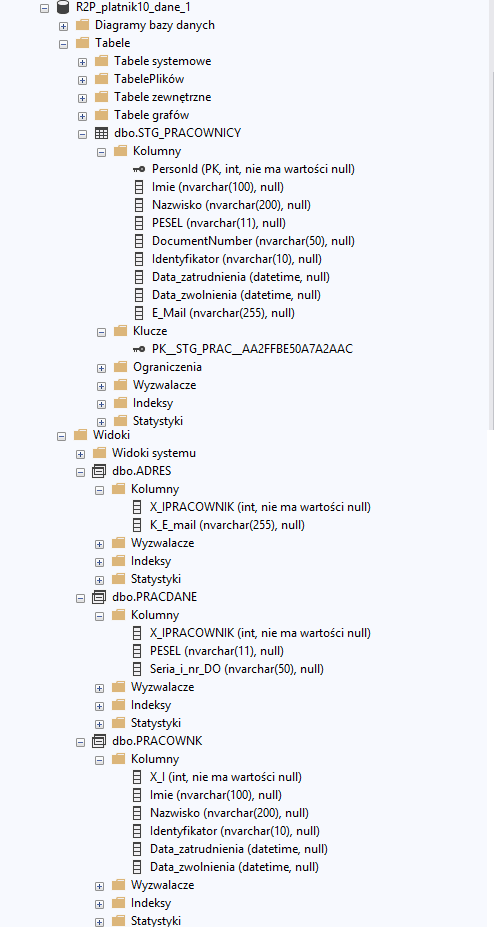

What should the DATA database look like after performing the above queries?

5. Data contract and concluding remarks

The FIRM view must return columns:
- X_I
- Nazwa

The PRACOWNK view must return columns:
- X_I
- Imie
- Nazwisko
- Identyfikator
- Data_zatrudnienia
- Data_zwolnienia
and technical columns:
- NULL as ZDo
- NULL as ZOd
- 1 as Umowa_o_prace
- 0 as Umowa_zlecenie
- 0 as Umowa_o_dzielo

The PRACDANE view must return columns:
- X_IPRACOWNIK
- PESEL
- Seria_i_nr_DO

The ADRESY view must contain columns:
- X_IPRACOWNIK, 
- K_E_mail 

Note: eFOBSync does not require knowledge of the structure of staging tables. Any changes on the client side can be handled by modifying views, without interfering with the configuration or integration code.

6. eFOBadmin configuration

In the R2P source configuration in eFOBadmin you should set: – server: address of the SQL Server instance – database_name: platnik10 – database: 1

Based on these values, eFOBsync will automatically connect to the databases: – R2P_platnik10_bin – R2P_platnik10_data_1

7. Connection configuration in eFOBsync

Access data to SQL Server must be entered in the data source configuration in eFOBsync.

In the connection configuration, please complete:

• database host name (e.g. localhost),
• port (default 1433),
• SQL Server instance name,
• name of the logical database (database_name),
• SQL user login details.eFOBsync uses this information only to establish a connection to the intermediate database. There is no requirement to use a default instance or default installer account.

---
